Tapered peep hole plug, ideal for older Evenheat, Paragon, Skutt, Olympic, and many other kiln brands. Now cast solid. Peephole plugs that fit most kilns brands (original kiln manufacturer's peephole plug is generally preferred, if available)
Dry Mortar Mixing Instructions Storage Dry Mortars should be stored in a dry, well-ventilated area and held off the floor on pallets. Storage temperature is not a consideration as long as the castable is in the desired temperature range prior to casting. Water The water used for mixing should be clean and of drinkable quality – potable water. Since the amount of water added to the dry mortar does more to affect the properties than any other factor it must be accurately measured. In the table below are the approximate water contents that would be required to attain proper mortar consistency for troweling or dipping.
Water Content for Smoothset Dry Mortar
Consistency
Avg. Recommended
Trowel Consistency 29% Water Dipping Consistency 50% Water Pounds per 1000 straight bricks 160 - 180 pounds dry mortar Temperature Ambient conditions as well as mixing water and material temperature can significantly affect the consistency of the mortars. In very cold conditions, the bags should be kept in warm storage, though not less than 60°F, for at least 48 hours before use. If the material temperature is below 60°F there will be an increased water demand for placement and will reduce strength properties. Mixing Mixing must be done in a paddle type mixing of sufficient capacity and energy to ensure thorough mixing. The level of dry material in the mixer should not be above the center paddle shaft. Also the paddles, which put a high level of work energy into the mixing operation, must be made of steel and have no more than 0.6” clearance from the mixer walls. This assures a rapid, thorough mix and the mixers virtually clean themselves from batch to batch. Mixer and tools used must be clean. Some substances like lime, Portland cement or calcium aluminate castable can cause problems with the mixing and consistency of the mortars. Add one half to three quarters of the mixing water to the mixer and begin its operation. Then add the dry mortar in full bag lots. See the table above. Add the remaining amount of recommended water during the first minute of wet mixing. Continue wet mixing for at least 20 minutes minimum. Depending on the speed of the mixer it might take up to 30 to 45 minutes for the mortar and water to be completely mixed. After mixing for the recommended times, turn off the mixer and take a sample in your hand and feel for lumps of clay that have not been fully dispersed. If you do find some, continue mixing until all the lumps of clay have been eliminated. If too much water has been added and it is too thin some additional dry mortar can be added to change the consistency to what is needed. Remove the wet mixed mortar out of the mixer and place it in buckets with lids or water proof containers that can be covered with plastic to keep the moisture in the mortar. The mortar should be allowed to set for 24 hours to provide the properties required for the bonding of the brick. This time allows the microscopic clay agglomerates to break down to the ultimate crystals with the action of the sodium silicate that is added to the mortar. This is a process called ‘Slaking’. After the 24 hour ‘Slaking’ of the mortar, place it back into the paddle mixer and mix for another 20 minutes. After this additional 20 minutes mixing take a sample from the mixer and determine if it is the proper consistency for the troweling or dipping consistency that is required. If it is not, then add 2 to 4 % more water in 1% increments. After the 1% water is added mix for at least 5 minutes. Continue increasing the water until the proper consistency is reached. Place the mortar in the containers used for ‘slaking’ and begin using the mortar. Remember to keep the mortar covered to keep it from drying out. If it does dry out, the surface will become like a film of plastic. Remix the mortar with a paint mixer attached to a high speed drill. It might be required to add a cup of water to help in remixing the mortar.
One of David Sturm's top 5 favorites! The Dual Input Digital Pyrometer offered by Skutt is of very high quality. It comes with 1 thermocouple but if you purchase an additional one, this pyrometer has the ability to read multiple zones at one time. The digital readout is easy to read and extremely accurate. It can be wall mounted or hand held. It also has a convenient flip out stand so you can set it upright on a flat surface. It comes with the following items: 1 – 2350 F (1285 C) Pyrometer with mounting case 1 – 6ft Type K thermocouple wire with 8″, 8 gauge, Type K Thermocouple 1 – Thermocouple mounting flange with mounting screws 1 – 9 volt battery included
Hold loose kiln elements in place with these easy to insert pins. These 1-1/4" pins are of a heat resistant alloy for temperatures to 2500 degree F (Cone 13). Sold 12 per package.
25 Amp Relay for KM Skutt kiln models Also called an Ice Cube Relay or a 25 Amp Detrol relay. If you aren't sure which relay you need, count the number of vent slots (louvers) on the top of your control box. If they have 5 slots, use this relay. This also applies if you've done the relay upgrade kit. If you are unsure about which relay you need, please contact David by phone (1-888-822-1982) or email him.
Hold loose kiln elements in place with these easy to insert, sharp-ended staples. These 1-1/2" staples are of a hear resistant alloy for temperatures to 2500 degree F (Cone 13). Packed 12 per package.
25 Amp relay for newer model or upgraded KM kilns. Also referred to as the Potter & Brumfeld relay
If you aren't sure which relay you need, count the number of vent slots (louvers) on the top of your control box. If they have 6 slots, use this relay. This also applies if you've done the relay upgrade kit, even if the control box only has 5 vent slots.
25 Amp Enclosed Power Relay with a 12 Volt Coil - Unit is the standard Power Relay used on All Polygonal and X2300-D & XB2300-D Series Kiln Automatic Control Panels, it is also used as the Control Relay for X2800-D & XB2800-D, X3200-D & XB3200-D, T2300-D & TB2300-D, and T3400-D & TB3400-D Series DaVinci Kilns and Hercules and Easy-Load kilns. This contactor is used interchangeably as a power contactor on both 240 volt and 208 volt kilns. The Enclosed Power Relay 25 Amp 12 Volt Coil is identical to the 240V Enclosed Power Relay. LOOK AT THE COIL VOLTAGE. L&L Kiln Mfg company uses both, and it is easy to get them confused. Always check the markings on the relay before ordering parts.
Type K thermocouples are the most common type of thermocouples used in electric kilns. These thermocouples are purchased in bulk directly from the factory to save you money. The manufacturer is ISO/IEC 17025 certified.

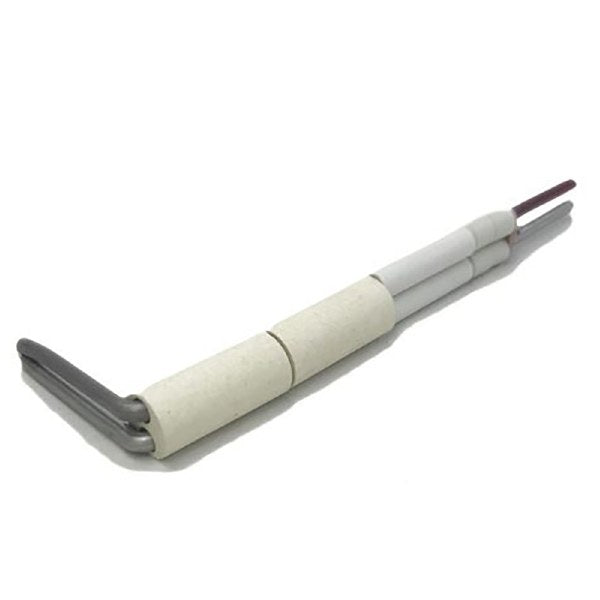

Type-K 8 Gauge Thermocouple (Exposed) with Ceramic Terminal Block - Ceramic tube is 4" Long x 1/2" Diameter. This is the standard thermocouple used in the Easy-Fire, School-Master, Jupiter, DaVinci, Fuego, Doll/Test and Liberty-Belle kilns. It is normally supplied in the kiln with a thermocouple protection tube (although the protection tubes rarely need to be replaced. We strongly suggest that, when changing the thermocouple, you remove the protection tube and empty any metallic oxides that may have fallen off as the thermocouple aged. That material can touch the new thermocouple and make for uneven temperature readings inside the kiln.
The KilnSitter Firing Gauge is used for sitter calibration. Slip it over the sensing rod of your KilnSitter to center it and ensure that it is working properly.
240 Volt Infinite Zone Switch - Unit includes a Mounting Nut. This can be used for both 240V and 208V Kilns. NOTE: Often a switch, when it burns out, exhibits overheating on the switch body at one of the spade electrical connection points. When this occurs, the mating connector on the wire may not give good electrical contact if refused. To reduce the possibility of overheating at this point on the new switch, we recommend replacing the female connector and the wire attached to it. If the switch body looks O.K. then do not replace the female wire connectors.
Maintenance kit for either the Cone Art BX or GX 119 size kilns. Kit includes 1 replacement thermocouple, 1 replacement element, and 1 replacement relay.
Maintenance kit for either the Cone Art BX or GX 1813 size kilns. Kit includes 1 replacement thermocouple, 2 replacement elements, and 1 replacement relay.
Maintenance kit for either the Cone Art BX or GX 1822 size kilns. Kit includes 2 replacement thermocouples, 2 replacement elements, and 2 replacement relays.
Maintenance kit for either the Cone Art BX or GX 2318 size kilns. Kit includes 2 replacement thermocouples, 3 replacement elements, and 2 replacement relays.
Maintenance kit for either the Cone Art BX or GX 2818 size kilns. Kit includes 2 replacement thermocouples, 3 replacement elements, and 2 replacement relays.
Maintenance kit for either the Cone Art BX or GX 2322 or 2327 size kilns. Kit includes 3 replacement thermocouples, 3 replacement elements, and 2 replacement relays.
Set includes: 2 wall elements All element designs are for kilns built after August 2000. Please include the serial number of your kiln when ordering. You save 10% when ordering a set vs buying individual elements. Our kiln tech recommends that all elements in the kiln get changed at the same time. However, individual elements can be purchased. Contact us if for more info and pricing if you need individual elements.
All element designs are for kilns built after August 2000. Please include the serial number of your kiln when ordering.
You save 10% when ordering a set vs buying individual elements. Our kiln tech recommends that all elements in the kiln get changed at the same time. However, individual elements can be purchased. Contact us if for more info and pricing if you need individual elements.
All element designs are for kilns built after August 2000. Please include the serial number of your kiln when ordering.
You save 10% when ordering a set vs buying individual elements. Our kiln tech recommends that all elements in the kiln get changed at the same time. However, individual elements can be purchased. Contact us if for more info and pricing if you need individual elements.
Please note: This set is for the 2336D OVAL kiln.Set includes: 1 top wall element 4 wall elements 1 floor element All element designs are for kilns built after August 2000. Please include the serial number of your kiln when ordering. You save 10% when ordering a set vs buying individual elements. Our kiln tech recommends that all elements in the kiln get changed at the same time. However, individual elements can be purchased. Contact us if for more info and pricing if you need individual elements.
Original factory 8 Gauge Type K thermocouple replacement WITH MOUNTING BLOCK. Typically, you'd only need the thermocouple (thermocouple alone is Skutt part 1515) unless the mounting block has been damaged in some way. Skutt part number 1506.
Elements for all smaller, current model, KM or KMT Skutt kilns (includes Firebox 8x4 LT, 8x6 LT, Glazetech, 614-3, and 714)
Kiln element stock varies wildly. If your elements are not in stock here, we will have them shipped to you from the manufacturer.
Looking for elements for a different Skutt kiln? Scroll down to see other options.
Check out this video of Dave showing how to pin elements.
Elements for all current model Skutt Kilns (8-12 sided, KM and KMT only, non PK), includes 818, 822, 1018, 1022, 1027, 1218, 1222, 1227
Kiln element stock varies wildly. If your elements are not in stock here, we will have them shipped to you from the manufacturer.
Looking for elements for a different Skutt kiln? Scroll down to see other options.
Check out this video of Dave showing how to pin elements.
Elements for all current model Skutt PK Kilns (includes 1227-3PK, 1231-3PK, 1427-3PK, and 1627-3PK)
Kiln element stock varies wildly. If your elements are not in stock here, we will have them shipped to you from the manufacturer.
Looking for elements for a different Skutt kiln? Scroll down to see other options.
Check out this video of Dave showing how to pin elements.
