Cone 10

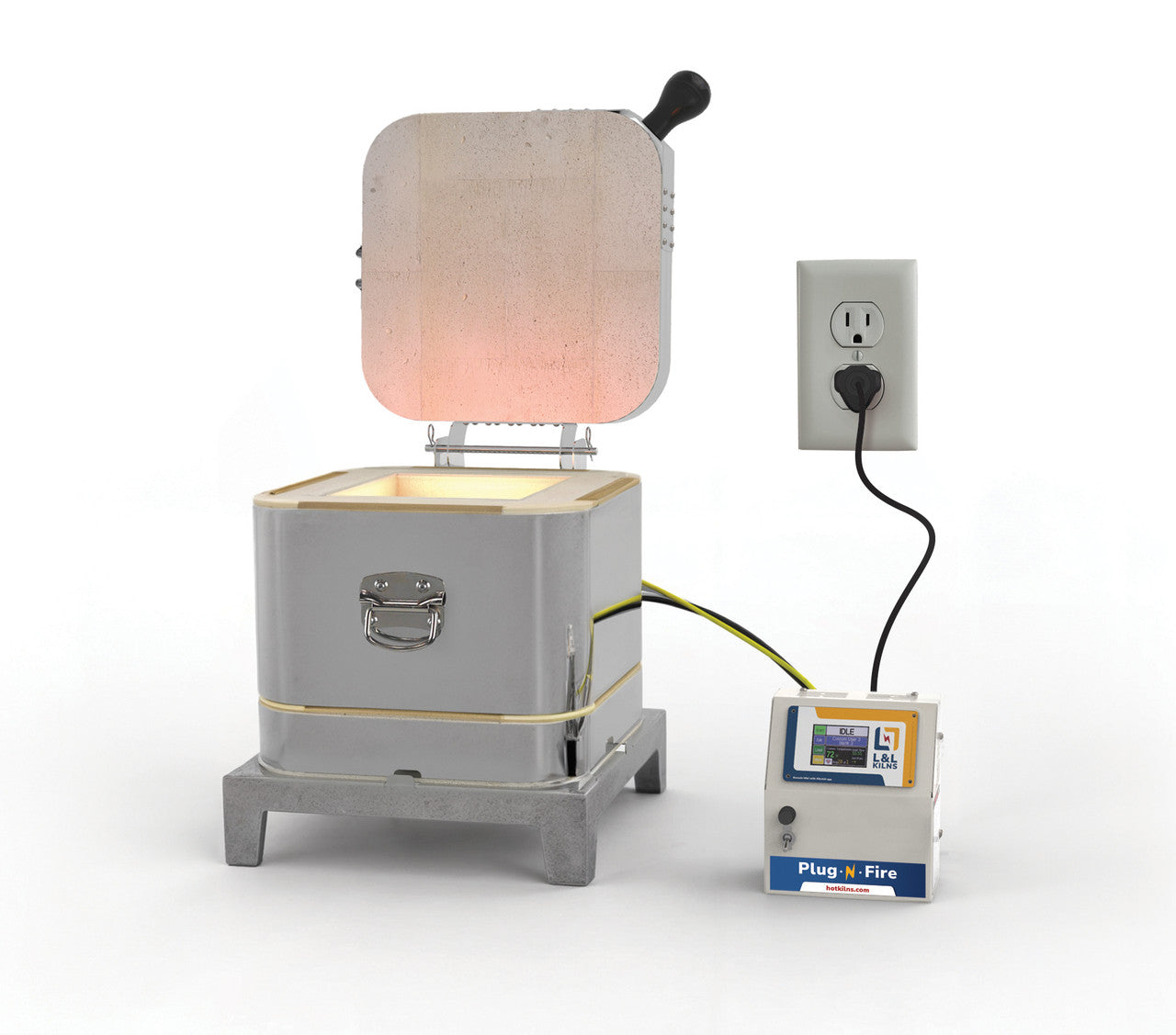

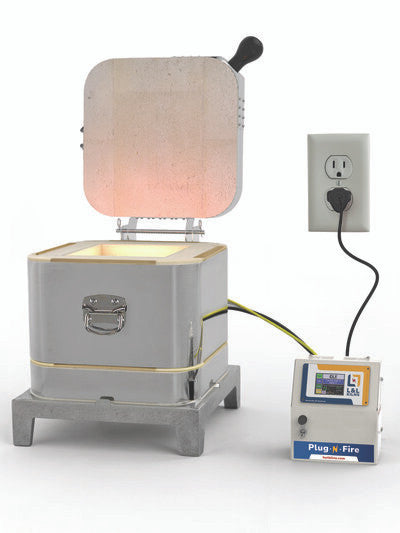

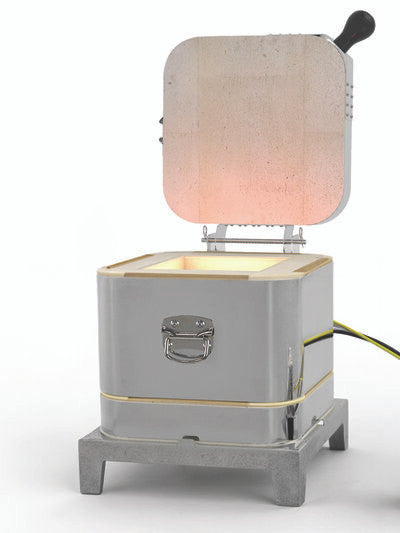

Model PF8 Craft/Test Kiln with a Genesis Mini Touchscreen Controller
- 8" Square x 9" High (0.33 cu ft)
- This kiln can fire to Cone 10 on a standard 15-amp circuit, and draws only 12.5 amps
- Extra-insulated sides with 2-1/2" K23 brick and 1" of backup insulation; Top & Bottom are 3" K23 brick

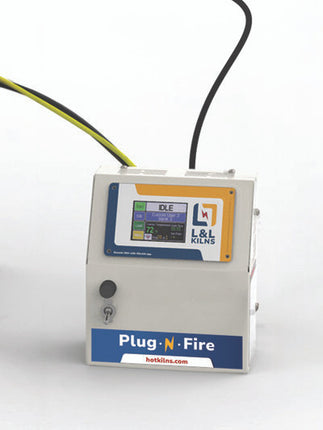

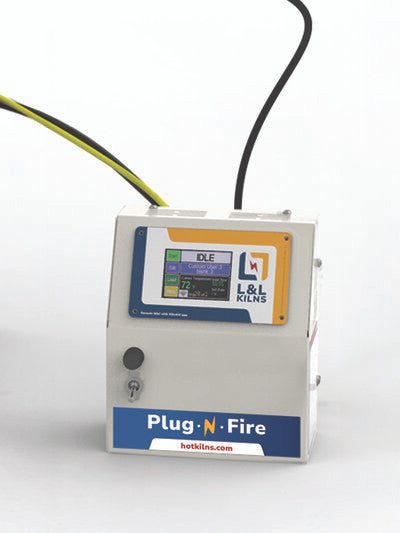

- Kiln plugs into a separate control panel with power and thermocouple wire jack
- Door safety switch shuts off power to the elements when the door is opened
- Hard ceramic element channels
- Includes one 7" by 7" by 3/8" shelf and three 4" posts
- Not yet listed to UL499
Includes Genesis-Mini Touchscreen Control
Downloadable Spec Sheet
Plug-n-Fire • 1 Phase 120 V
Kiln Model Specs
Kiln Model Specs
- Kiln Opening (Diameter): 8" Square
- Kiln Depth: 14" or less
- Cubic Footage: .33 cu ft
- Insulation:
- Amps, requires a amp breaker
- ( for 3 phase models)
- Touchscreen Controller:
Pre-Order/Special Order
When not in stock, kiln will be ordered from Manufacturer, lead time is 20 weeks
Alternate Electrical Service
L&L Easy-Fire Kiln (configure your own!)
L&L Easy-Fire Kiln (configure your own!)
Pre-Order/Special Order
L&L’s Most Popular Kiln – Trusted By Studios, Schools And Artists
Choosing the right kiln can be tough, these kilns easy to use. They take the guesswork out of firing, whether you are an experienced artist or a beginner. L&L Kilns are built for safety, simplicity, and peace of mind, with features you’ll appreciate every time you fire.

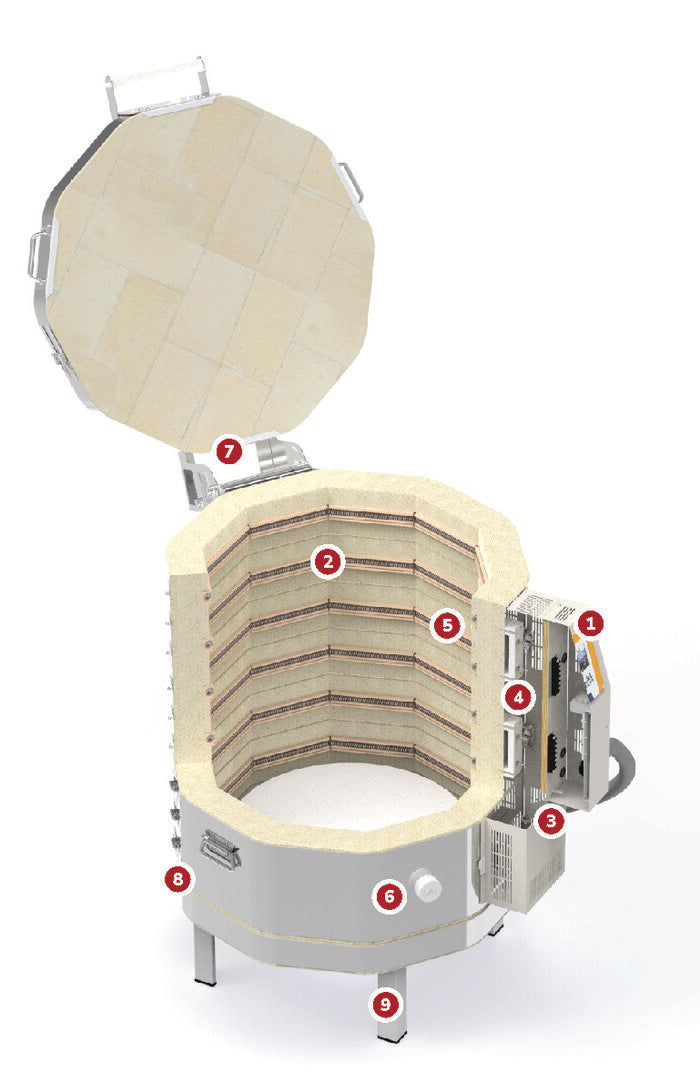

1) Genesis Touch Screen Control, intuitive programming, comes with a free app for monitoring the kiln
2) Hard Ceramic Element Channels protect elements and fragile firebrick, improving kiln life dramatically
3) Piggy-back Control Panel makes servicing easy and safe, and keeps electronics cool
4) Ceramic Terminals make changing elements easy without crimping
5) Protected Thermocouple for worry-free loading
6) Solid Ceramic Peephole Plug - no chance of falling out (not shown in photo)
7) Spring-Lift lid - easy to lift, no support bar restricting loading
8) Stainless Steel Case
9) Full Support Stand extends the life of the bottom brick
10) 3" brick adds strength and insulation for increased energy efficiency
Delivering Consistent Results, Firing After Firing
Features of L&L Kilns

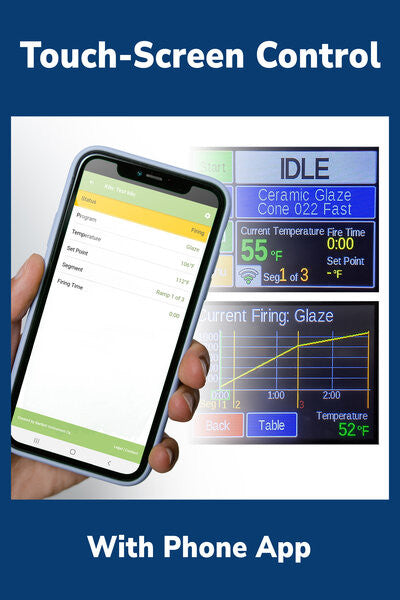

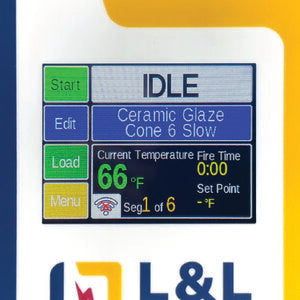

Genesis Touchscreen Kiln Controller
The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.

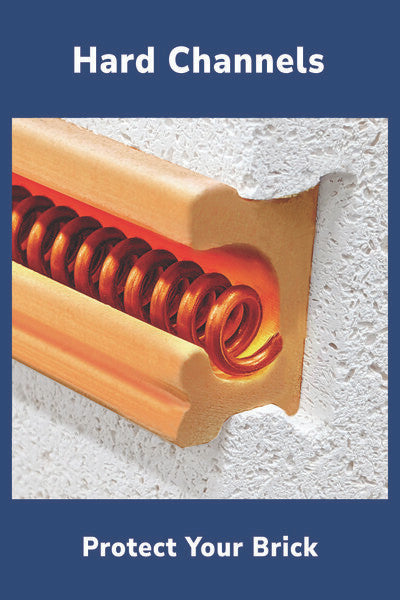

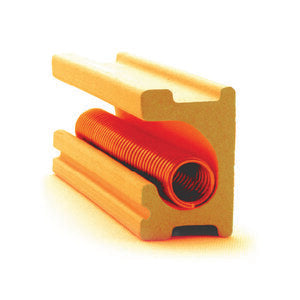

Stronger, Safer Kilns with Ceramic Element Channels
Discover L&L’s exclusive ceramic element holders that protect kiln elements, ensure easy maintenance, and deliver consistent, reliable firing results.

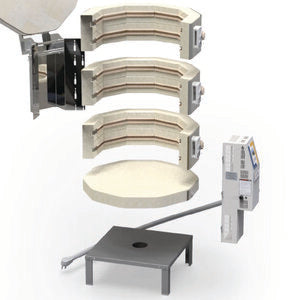

Sectional Kiln Construction
The sectional construction of our kilns allows for easy disassembly, transportation, and maintenance. This modular design is particularly advantageous for studios with space constraints or those requiring frequent relocation of equipment.

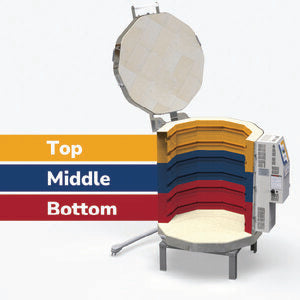

Multi-Zone Control for Even Kiln Heating
EVEN FIRING. MAKES LOADING MORE FLEXIBLE. ADJUSTS FOR ELEMENT AGING. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln. It automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.

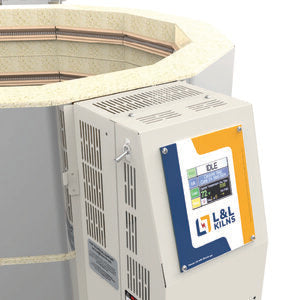

Angled Control Panel for Kilns
EASY TO SEE AND PROGRAM THE CONTROL. Angled control panel makes viewing control and programming easier.

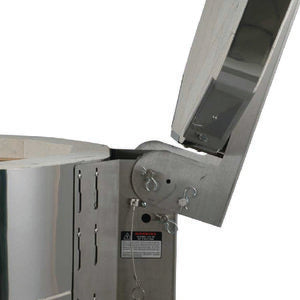

Easy-Open Spring Hinge for Kilns
Opens wide for loading. A feather-light spring hinge allows full access without a side support bar, making loading and unloading effortless.

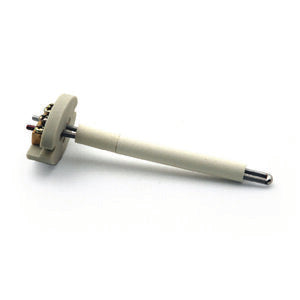

Heavy-Duty Type K Thermocouples
Thick 8-gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.

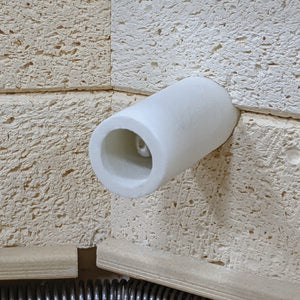

Protected Thermocouples
Ceramic protection tubes shield the thermocouple tips, preventing oxide dust from contaminating the kiln during firing.

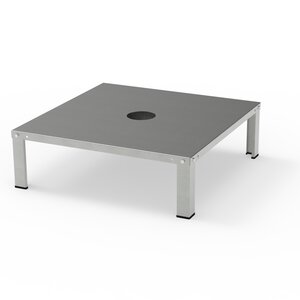

Full Support Stand for Kilns
Aluminized stands are solid and corrosion-resistant, offering full, robust support under the kiln.

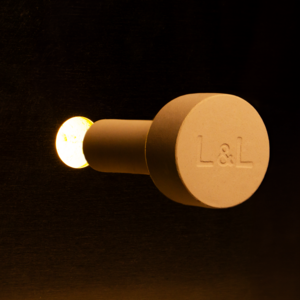

Solid Ceramic Peephole Plugs for L&L Kilns
STOP BREAKING PEEPHOLE PLUGS. Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.

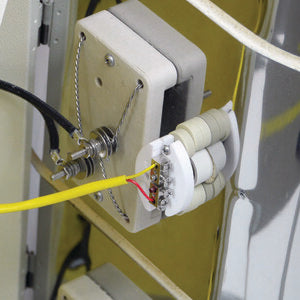

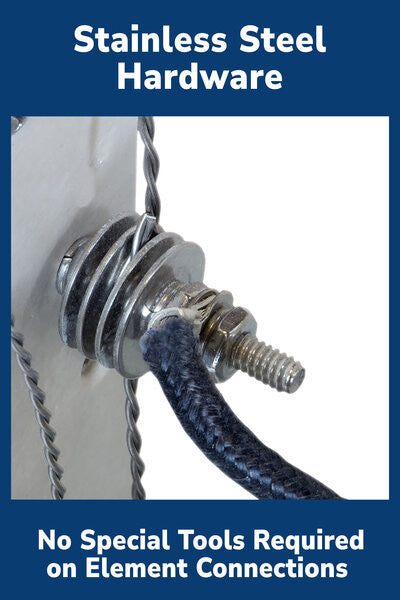

"No Crimp" Ceramic Element Connections
Industrial-grade ceramic terminal blocks make changing elements easy. All contact between elements and wire lugs is over a wide surface of heavily torqued stainless steel washers.

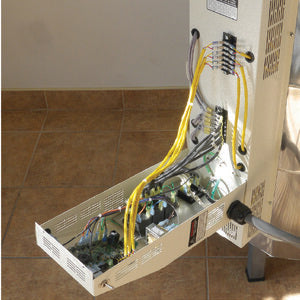

Easy-Service Control Panel
THIS IS THE SAFEST AND EASIEST KILN TO WORK ON. The Control panel pulls down easily and remains perpendicular to the element box for very easy access. All wiring is neatly laid out in a professional and industrial way with color coding and numbering for easy repair and troubleshooting. Best of all the double panel design results in cooler panels and longer control and relay life.
