Description

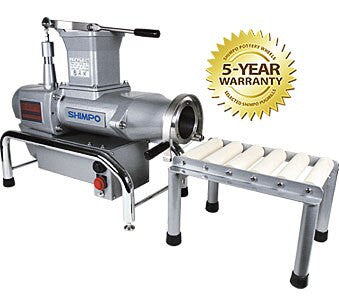

The NRA-04/04S pugmill features newly designed twin augers and a forceful direct gear driven motor. It's high quality wedging and extruding capacity obtained produces virtually air-free clay and increases clay workability that make this compact pugmill one of the most efficient and competitive on the market.
The NRA-04S pugmill includes high quality stainless steel nozzle, auger case, and rollers.
| Features & Benefits |
|---|
| Forceful Direct Gear Driven Motor | Provides maximum mechanical force for blending requiring minimum operator effort |
| High Extruding Capacity | Twin stainless steel mixing augers blend and extrude up to 440 lbs per hour |
| High Quality Wedging Function | Newly designed twin augers, typically found only in large industrial machines, increase wedging capacity and produces practically air-free clay without a vacuum |
| Dual Safety System | Safety limit switch automatically cuts power to pugmill when augers are exposed. Stop button allows for immediate operator control |
| Compact Design | Removable aluminum or stainless steel case allows for easy access to mixing chamber for fast and easy clean-up and maintenance |
| Cut Off Wire & Clay Receiving Table With Rollers | Allowing for easy bagging of extruded clay |
| Warranty | 5-year |
| NRA-04/04S |
|---|
| Motor | ¼ HP, 200 W, 115 VAC, 60Hz, single Phase |
| Extruding Capacity | 880 lbs./hour |
| Nozzle Diameter | 3 ½ diameter |
| Hopper Size | 3 ½ x 3 ½ |
| Dimensions | 25 ½" x 12" x 22 ½" |
| Weight | NRA-04: 210 lbs. | NRA-04S: 232 lbs. |
